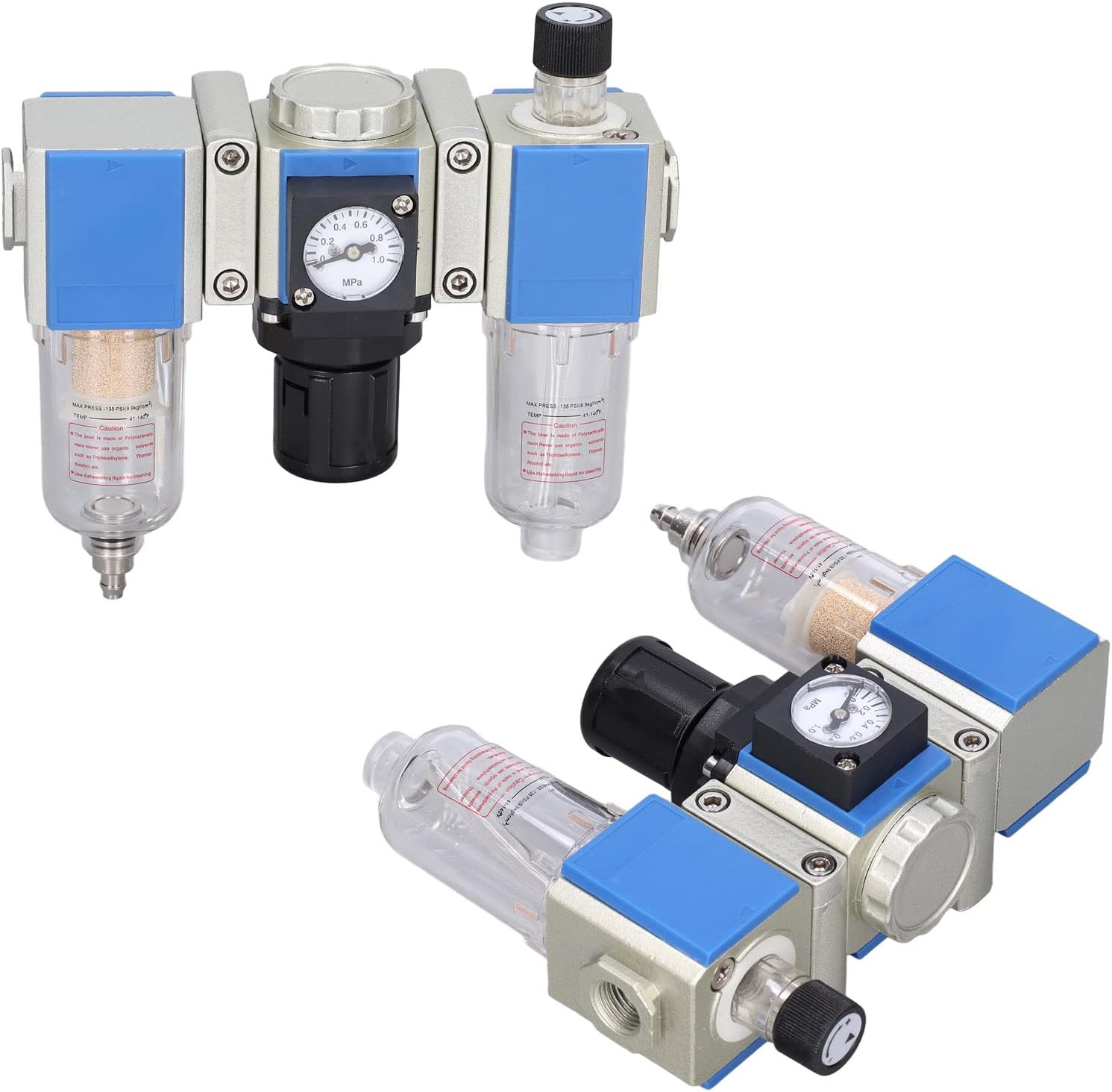

Compressed Air Filter Regulator Lubricator Combo Water Oil Separator 3 in 1 3 Unit (GC200-06)

Item Type: Compressed Air Filter Regulator Lubricator ComboMaterial: Aluminum alloyModel GC200-06 GC200-08 Way of working Air Connecting pipe caliber PT1/8 PT1/4 Filter element accuracy 40μm or 5μm Operating pressure range Automatic and differential pressure drainage type: 0.15-0.9Mpa (20-130Ps); manual drainage type: 0.05-0.9Mpa (7-130Ps) Ensure pressure 1.5Mpa(215Psi) Operating temperature -20℃~70℃ Water filter cup capacity 10CC Oil supply cup capacity 25CC Recommended lubricating oil ISO VG32 or similar oil Components Pressure regulating valve GR200-06 GR200-08 Lubricator GL200-06 GL200-08 Filter GF200-06 GF200-08Package List：1 x Compressed Air Filter Regulator Lubricator ComboNote:1. Keep the pipeline clean and prolong the service life.2. The bowl body is made of polycarbonate resin. Do not use solvents such as dilution, etc. Use dish soap for cleaning.

• MORE STABLE AND : The oil drip structure adopts the form of gap seal. The oil adjustment is more stable and , and the gas can be refueled without stopping air
• ROUGHLY CALCULATED AMOUNT ACCORDING SCALE RING: The oil supply adjustment ring only rotates once, and the oil supply size is basically star shaped. The oil supply amount can be roughly calculated according to the position of the scale ring
• LOW FOGGING : The special drip nozzle structure produces negative pressure at the drip outlet and low fogging
• HIGH REPEAT ACCURACY: Air filter regulator lubricator combo bring stable pressure regulation, high repeat accuracy, very
• FAST AND FIXED CONNECTION: Compressed air filter provide fast and fixed connection, have high installation accuracy
