4-Wire Internal Resistance Tester 18650 Battery Internal Resistance Test Meter Electric Vehicle Battery(YR1035-Clips)
4.6 (45 items)
Limited Time SaleUS$71.17 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 215110012 | Release Date | 2026/04/12 | List Price | US$47.45 | Model Number | 215110012 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
R1035 Specifications:Material: ABSColor: blackBattery: 1 * lithium battery, 2000mAh (included)Accuracy format: ±([accuracy percentage]+[least significant digit])Range: 20mΩ/200mΩ/2Ω/20Ω/200ΩMaximum resolution: 0.01mΩ/0.1mΩ/1mΩ/10mΩ/0.1ΩAccuracy: 0.7%+7/0.5%+5/0.5%+5/0.5%+5/0.6%+5Display mode: 22.00mΩ (when ZR function is enabled)/220.0mΩ/2.200Ω/22.00Ω/220.0ΩIn the range of 5%-95% of the gear, when it is not within this range (less than 5% of the range of the gear range, or greater than 95% of the range of the gear range), the error may be greater than the above accuracy.Voltage measurement: ±(% reading +% range)Range: 1V/10V/100VMaximum resolution: 0.00001V/0.0001V/0.001VAccuracy: 0.15+0.015/0.15+0.010/0.15+0.015Display mode: .99999V/9.9999V/99.999VPositive and negative symmetry error ±(0.012%+5 words)Temperature drift within normal use temperature (10℃-40℃) 100ppm/℃Maximum voltage between any terminals: 100VDisplay: internal resistance figures: 2000 counts Voltage figures: 99999 counts update 4 times per secondTemperature: working: 10℃-40℃, storage: -20℃-60℃ internal resistance temperature coefficient: 0.1 * (prescribed accuracy)/℃ (<;18℃ or >28℃)Power consumption:<;60mA (200mΩ and above range, when the power is 3.7V, the backlight is off)<;120mA (20mΩ range, when the power is 3.7V, the backlight is off)<;10mA (enter low power consumption mode)0mA (shutdown)Package size: 120 * 60 * 40mm / 4.7 * 2.4 * 1.6inPackage weight: 320g / 11.3ounceYR1030 Specifications:Material: plasticsVoltage measurement: 4V/40VMaximum resolution: 1mV/10mVAccuracy: 0.8%+5/0.8%+5Display mode: 4.400V/44.00VInternal resistance measuring ranges: 20mΩ/200mΩ/2Ω/20Ω/200ΩMaximum resolution: 0.01mΩ/0.1mΩ/1mΩ/10mΩ/0.1ΩAccuracy: 0.7%+7/0.5%+5/0.5%+5/0.5%+5/0.6%+5Display mode: 22.00mΩ/220.0mΩ/2.200Ω/22.00Ω/220.
- Measures below 5 ohms, and the internal resistance is more accurate.
- It can measure plumbic acid, lithium ion, lithium polymer, lithium iron phosphate, alkaline, dry battery, nickel hydrogen, nickel cadmium, button battery, etc.

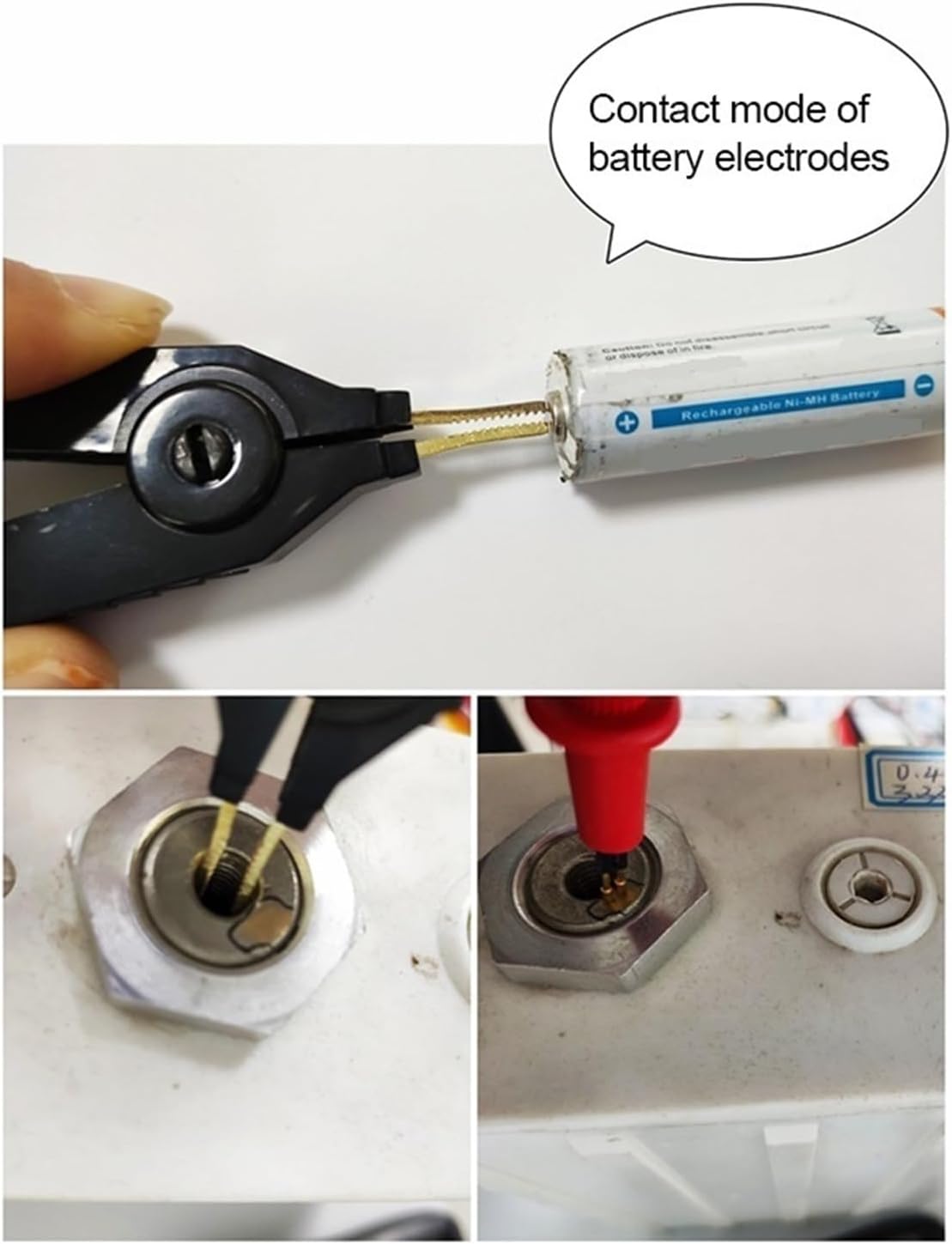

- True 4-wire AC sinusoidal measurements effectively refrain the effects of test leads and contact resistance.
- Two function interfaces, battery sorting function.
- Built-in battery, phone recharger charging, low power consumption + multiple power saving options.
| Department | Unisex Adult |
|---|---|
| Item Weight | 0.353 ounces |
| Manufacturer | LIBODD |
| Number of pieces | 1 |
| Assembly required | No |
| Item model number | 1005004867078164 |
| Package Dimensions | 1.18 x 0.79 x 0.39 inches |
