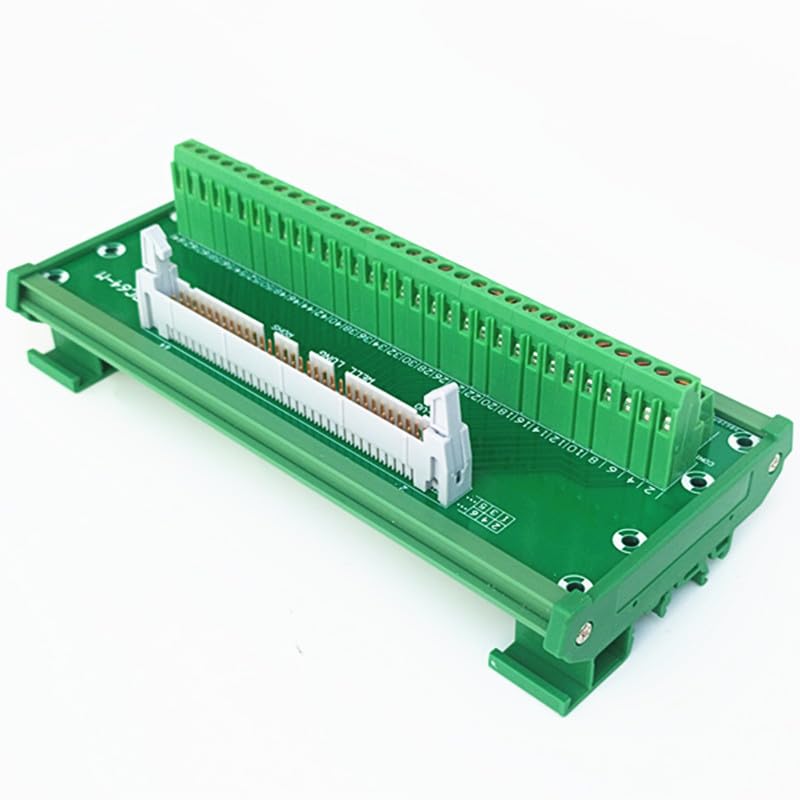

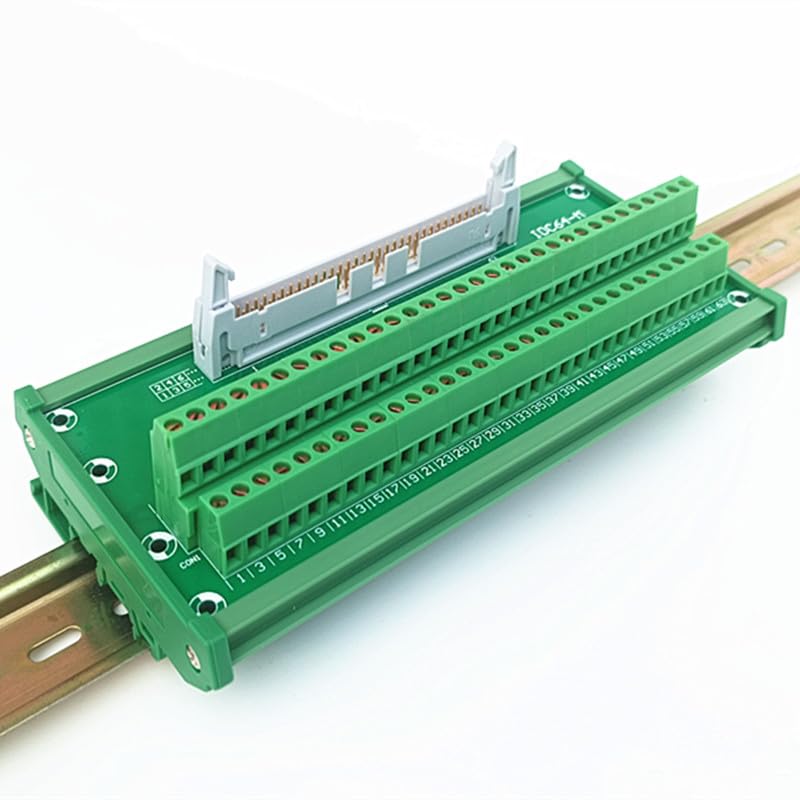

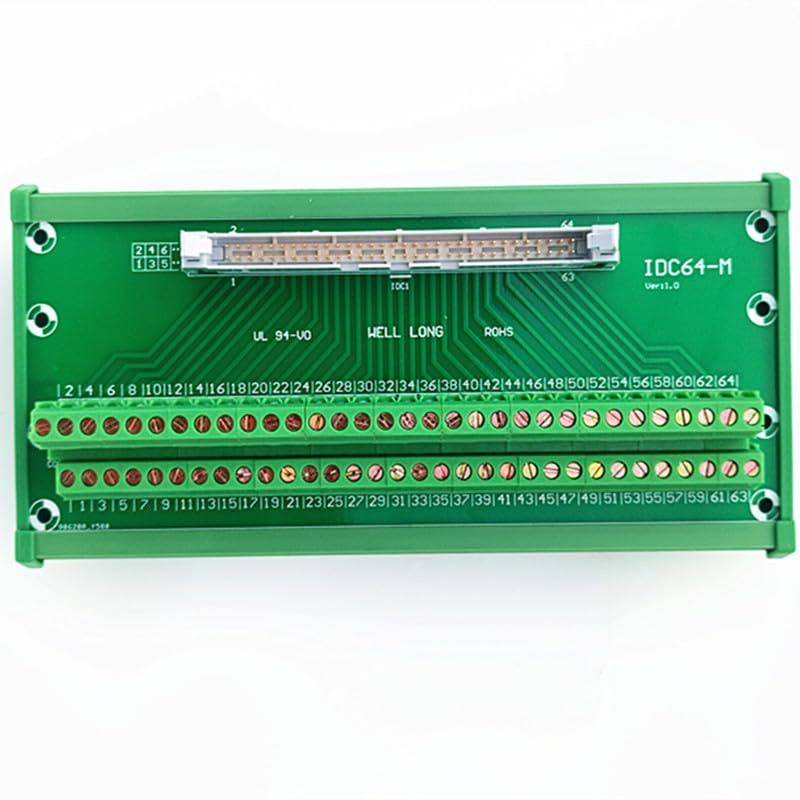

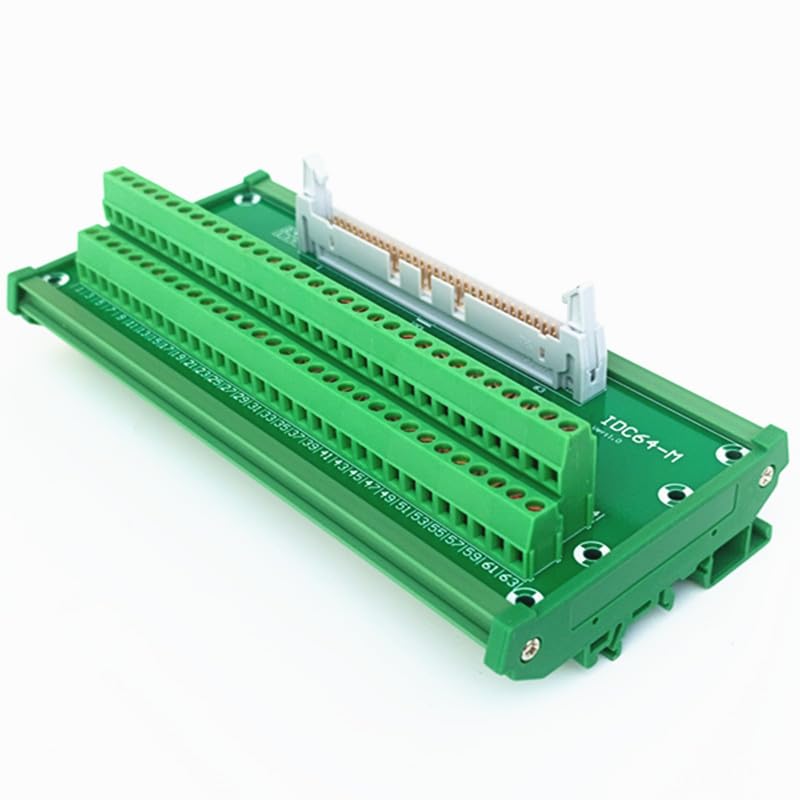

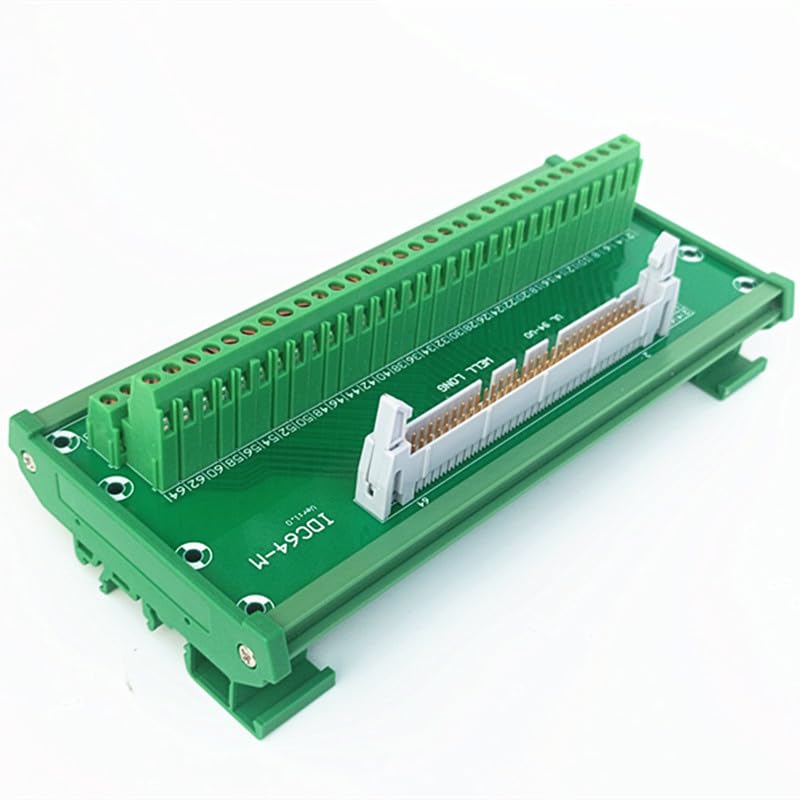

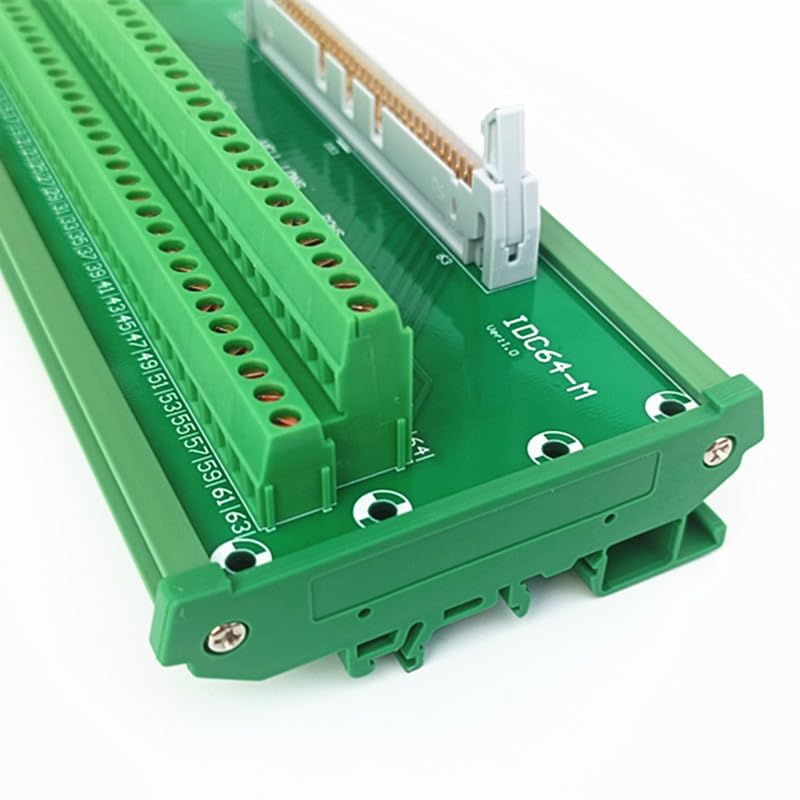

IDC-64 DIN Rail Mounted Interface Module 2x32 Pins 0.1" Male Header Breakout Board, Terminal Block, Connector.
4.1 (87 items)
Limited Time SaleUS$19.19 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211029799 | Release Date | 2026/04/04 | List Price | US$12.79 | Model Number | 211029799 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
IDC-64 DIN Rail Mounted Interface Module. IDC pin pitch 2.54mm/0.1" male header connector.Pitch 5.0mm/0.197" screw terminal block. Din rail mountable - for width 35 / 32 / 15mm rails. Din mount case can be taken apart for panel mount use. FR-4 fiber glass PCB, dual copper layers. PCB Dimensions: 72.5 x180mm(W x L). External dimensions: 87 x 182x 54mm(W x L x H). 100% new, never used. Rated voltage: 60V. Rated current: 1A / per pin. Operating Temperature: -20ºC to 50ºC Terminal block specifications:Wire range - 24-12AWG.Strip length - 5mm.Screws - M3,steel,Zinc plating color.Pin header and Cage - Brass.
- Modular Design: This interface module features a 2x32 pin
- 1" male header breakout for easy connection to various electronic components.
- Convenient Mounting: With a DIN rail mount, the module can be securely installed on standard DIN rails for a tidy and organized setup.
- Robust Construction: Constructed with high-quality materials, this terminal block connector ensures reliable performance and durability.
- Versatile Application: Suitable for a wide range of industrial, automation, and control system applications that require secure wire terminations.
| Color | Green |
|---|---|
| Model | IDC64M-A3 |
| Pitch | 0.1 Inches |
| Voltage | 60.0 |
| Brand Name | SZ-WEEL LONG |
| Part Number | IDC-64M-A3 |
| Manufacturer | XUHONG |
| Material Type | Metal, Plastic |
| Mounting Type | DIN Rail Mount |
| Connector Type | Idc Header |
| Current Rating | 1 Amps |
| Number Of Poles | 64 |
| Specification Met | UL |
| Temperature Range | -20to50 Degrees Celsius |
| Number Of Contacts | 64 |
| Included Components | Terminal Block, Header Connector, Din Rail Mount |
| Number of Positions | 64 |
| Item Dimensions W x H | 7.1"W x 2.1"H |
| Upper Temperature Rating | 50 Degrees Celsius |
